MAX PowerLite Framer High Pressure

Part Number: MAXHN90
Click image to enlarge

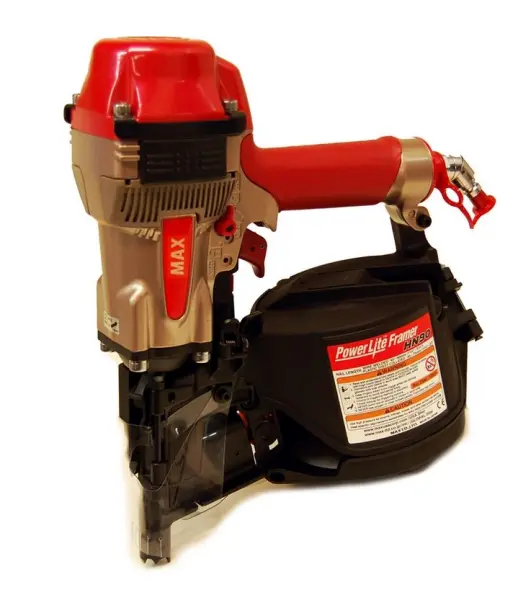

MAX PowerLite Framer High Pressure

597.645
$597.65
Quantity:

Product Details

Features

* Powered by 500 psi high pressure system
* Powerful
* Light weight only 5.3 lbs, approx. 40% lighter than most competitors tools without sacrificing power
* Small and compact, tool height less than 13"

* Anti-double fire mechanism
* New design recoil reduced valve
* Dial adjustable depth control

* Unique tangle free swivel fitting
* Comfortable rubber grip
* Maintenance free end cap filter

* Comes with plastic carry case

Drives from 1-3/4" x .099" up to 3-1/2" x .148" flat wire welded nails
Also drives from 1-3/4" x .099" up to 3" x .113" flat plastic sheet collated nails

Applications

* Framing
* Sheathing
* Decking
* Subfloors
* Exterior decks
* Furring
* Siding
* Crate & Box assembly


Specifications

  • Nail size: 3-1/2"
  • Angle: 15
  • Gauge: .148

                                      Specifications

MODEL
HN90
FIRING METHOD
Contact trip with the Anti-double fire mechanism
WEIGHT
5.3 lbs
DIMENSIONS

12-7/8"(H) x 5"(W) x 11-1/2"(L)

LOAD CAPACITY
300 nails
OPERATING PRESSURE
170 to 320 psi
AIR CONSUMPTION
0.120 ft3 /cycle at 257 psi
