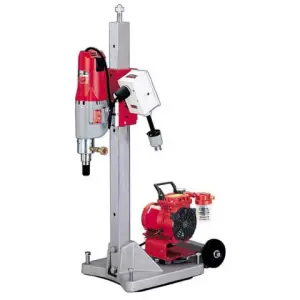

Milwaukee® Diamond core rig

Part Number: MIL4120-22
Click image to enlarge

Milwaukee® Diamond core rig

RFQ ONLY
RFQ ONLY
Quantity:

Product Details

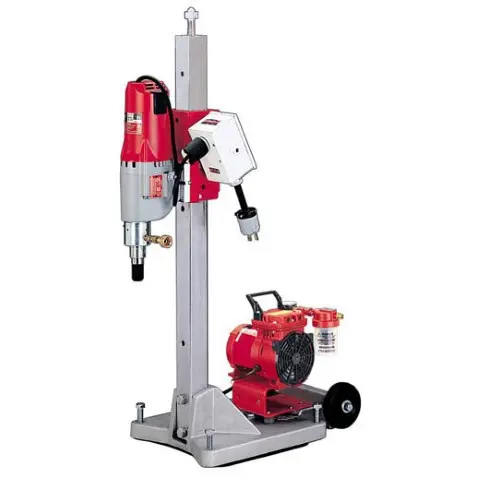

The model 4120-22 core rig comes with a large cast aluminum base and 4 leveling screws for fast accurate leveling adjustment. The durable precision-ground 2-1/2 in. steel column is 43-1/2" high and has a universal motor adapter plate. It is also equipped with a reversible feed handle, a model 4096 coring motor, Vac-U-Rig® kit as well as a meter box. The Vac-U-Rig® assembly uses a vacuum pump to apply suction to a large pad mounted on the bottom of the rig. This aids in stability when coring holes.

Specifications

  • Tool warranty: 5 years
  • Max HP: 4.8
  • Motor protection: Clutch
  • Amps: 20
  • Plug type: L5-20P
  • Weight: 115.3 lbs
  • Spindle: 1-1/4"-7
  • Suggested Dia me Med aggregate : 6"-10" / 2"-6"
  • Brand: Milwaukee
